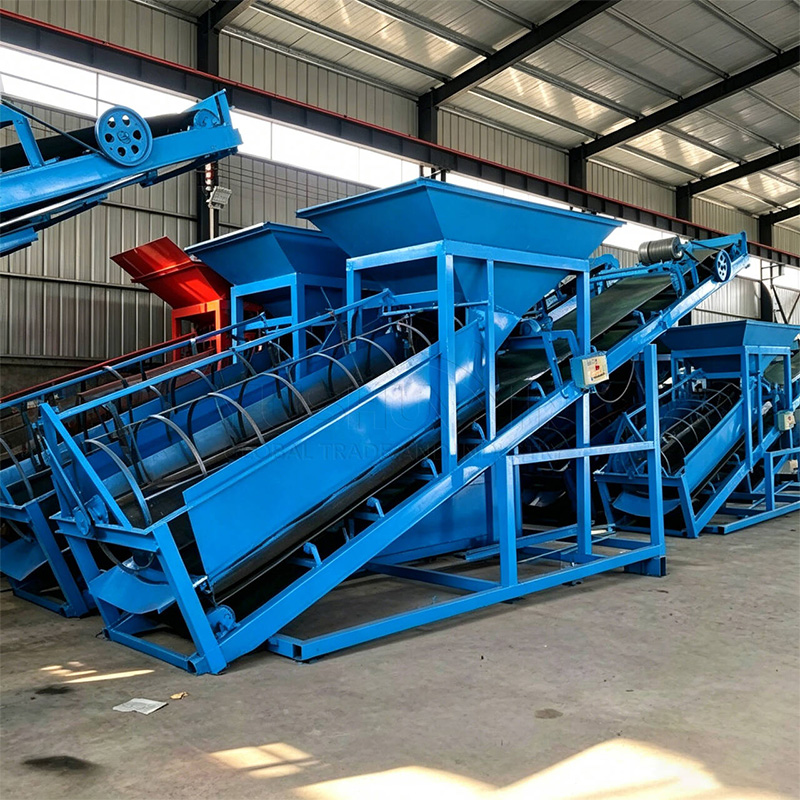

Feeding and Screening Integrated Machine

The Fertilizer Feeding and Screening Integrated Machine is a multifunctional piece of equipment that combines material feeding and screening into a single unit. It is widely used in fertilizer production lines to improve efficiency and reduce manual labor.

Main Functions
Uniform feeding of bulk fertilizer materials
Screening and grading based on particle size
Removal of oversized materials and impurities

Structure Components

The machine typically consists of:

Hopper (Feeding Bin): Stores raw materials and ensures continuous supply
Feeding System: (vibrating feeder or belt feeder) controls the feeding speed
Screening Unit: (rotary drum screen or vibrating screen) separates materials by size
Frame & Drive System: Includes motor and transmission components

Working Principle
1.Raw materials are loaded into the hopper
2.The feeding system delivers materials evenly
3.Materials enter the screening unit
4.Materials are separated into:
Qualified products
Oversized particles (for reprocessing)
Fine powder
